Windows

Connect your favorite supported PlayStation, Xbox, or Nintendo controllers to a Cronus Zen and a PlayStation 5, using the official Sony PS REMOTE PLAY app for Windows.

๐Ÿ‘‰ Before you get started, please review the PS REMOTE PLAY CHECKLIST and apply the PS5 CONSOLE SETTINGS.

CHECKLIST
PS5 SETTINGS

Please read this important PS REMOTE PLAY CHECKLIST before setting up your PS5:

๏ปฟ

  • You should be running Windows 10 or Windows 11.
  • Make sure the device you are running PS REMOTE PLAY on is on the same network as your PS5 (preferably wired).
  • Download ASTRO's Playroom. It's free and great for testing all DUALSENSE controller functions.
  • Do not have any PlayStation controllers paired by Bluetooth to your PS5 (delete them).
  • There may be no DUALSENSE Adaptive Trigger or rumble support in some PS5 games.
  • Do not have any scripts or GamePacks enabled while setting up your controller.

๐Ÿ‘‰ This page includes the following official PS5 REMOTE PLAY for Windows setup guides:

๐Ÿ‘‰ Xbox, PlayStation, Nintendo Controllers to PS5 Guides:

DOWNLOAD

Download the latest PS Remote Play for Windows (Click here for the official download page). Manually agree to the download policy by checking the box and the Download button will become available. The file is called RemotePlayInstaller.exe; open it to install.

Document image

SETUP PS REMOTE PLAY

Select your preferred language, then click OK. It will download the installer file in your chosen language and ask where you'd like to install (leave this as default), click the Next and Install buttons to begin the installation of PS REMOTE PLAY for Windows.

Document image

If this is your first time running the app, it will ask you to sign in to the same PSN account (1) as the PS5 you want to game on. Enter your account details (2), select the Confirm and Continue button and you'll come to a screen asking, "Which do you prefer to connect to"?

Don't select PS5 just yet. You need to change a couple of settings (3) because you're not actually using the app to game on your PC, it's only being used to send your DUALSENSE controller outputs directly to the PS5, so all video quality settings should be set to their lowest - a sneaky way to bypass the third-party PS4 SPECIALITY controller block ๐Ÿ˜‹

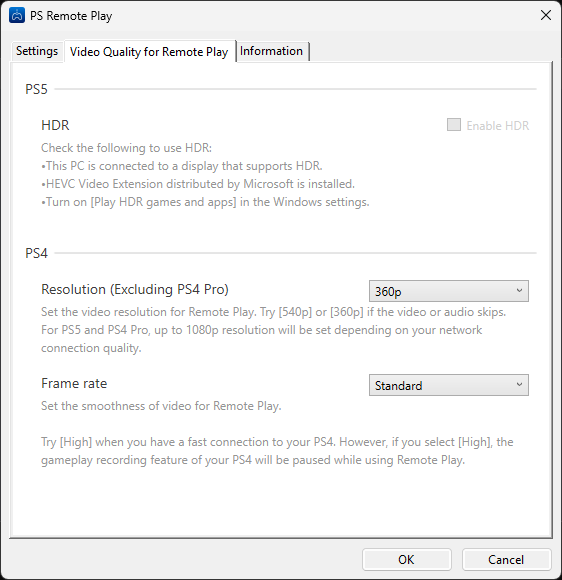

Select the cog icon on the left (3) and set the Video Quality for Remote Play to 360p, the Frame Rate to standard, and DO NOT check the HDR box if it gives you the option. Click OK to finish and that's all the setup steps you need to do for PS REMOTE PLAY!

Document image

Every time you load the PS REMOTE PLAY app in future, it will immediately ask to connect to your PS5 and away you go!

Document image
Document image
Document image

KNOWN ISSUE: The Zen may crash with an E3002 error if you press the mute button on the DUALSENSE controller (when muted the LED is ORANGE). Click on the mic icon to mute/unmute without risking the error (see image above).

๐Ÿ‘‰ Here are the USB and Bluetooth PS REMOTE PLAY setup guides for every major controller to a PS5:๏ปฟ๏ปฟ

๐ŸŽฎ DUALSENSE (USB)

Document image

Setup Hardware: Windows 11 PC w/ SONY PS REMOTE PLAY, DUALSENSE controller, Zen Studio and Zen Firmware .

  1. Connect the CRONUS ZEN to a WINDOWS PC from both PROG (mini-USB) and CONSOLE/PC (micro-USB).
  2. Open ZEN STUDIO > Device Panel > Select "Enable PS Remote Play"
  3. Wait for the Zen to restart, then check PS Remote Play is enabled (unplug and reconnect all USB cables from the Zen if it doesn't detect in Zen Studio after the restart).
  4. Connect a DUALSENSE controller to A1 and press the PS button to power it on.
  5. Open the PS REMOTE PLAY app and select your PS5. (You can now move to your TV).
  6. Open ASTRO's PLAYROOM and select CONTROLLER DEMO. This will test every aspect of the controller including Vibration, Adaptive Triggers, Touchpad, Motion Sensor (Gyroscope), Adaptive Triggers, and Mic (headset mic from PC Sound Card).

  7. The DUALSENSE touchpad LED is WHITE when browsing the PS5 menu and changes to BLUE as soon as you open ASTRO's PLAYROOM or any other PS5 game.

If successful, the Zen RGBs and DUALSENSE touchpad will change to solid BLUE as soon as you open ASTRO's PLAYROOM๏ปฟ, and if the ADAPTIVE TRIGGERS test works, that indicates Zen, controller, PC and console (using PS REMOTE PLAY) are now correctly paired and you can play your favorite PS5 games. If Adaptive triggers don't work, make sure the controller is powered on by pressing the PS button, then press Zen's reset button a couple of times. If the test still fails, unplug the PROG mini-USB cable and again press Zen's reset button a couple of times; that should re-sync everything and Adaptive Triggers should now work. Note: The Zen RGB LEDs don't currently light up when gaming on a PC w/ PS REMOTE PLAY and a DUALSENSE controller.

๏ปฟAUDIO: The DUALSENSE does not support audio over Bluetooth. If you wish to use a headset, connect it directly to the PC's sound card, and the controller mic also gets re-routed directly to the headset mic (you can test this in ASTRO's PLAYROOM - click on the mic icon in PS REMOTE PLAY to unmute, as pressing the mute button on the controller sometimes causes an E3002 error). If you don't have a headset and wish to use voice chat, you can also use a laptop's built-in microphone.

๏ปฟSTEAM USERS: If you have Steam installed and running on your PC, the Zen RGBs, the DUALSENSE touchpad will change color to CYAN. We recommend that you close Steam while using PS REMOTE PLAY. Once you've done that, press Zen's reset button and the Touchpad and Zen RGBs will change to BLUE once you're in a game.

๐ŸŽฎ DUALSENSE (BLUETOOTH)

Before you pair any controller to the Zen using Bluetooth, we recommend that you clear the Bluetooth pairing cache first. Open Zen Studio and go to Device Panel > click the Clear BT Devices button. You'll then get a confirmation pop-up; click Yes.

Document image

Setup Hardware: Windows 11 PC w/ SONY PS REMOTE PLAY, DUALSENSE controller (fully charged๐Ÿ”‹), Zen Studio and Zen Firmware .

  1. Connect the CRONUS ZEN to a PC from both PROG (mini-USB) and CONSOLE/PC (micro-USB).
  2. Open ZEN STUDIO > Device Panel > Select "Enable PS Remote Play"
  3. Wait for the Zen to restart, then check PS Remote Play is enabled (unplug and reconnect all USB cables from the Zen if it doesn't detect in Zen Studio after the restart).
  4. Press Zen's Bluetooth pairing button P2 until the RGBs flash BLUE.
  5. Hold the CREATE+PS buttons until the DUALSENSE lightbar flashes๏ปฟ WHITE.
  6. Open the PS REMOTE PLAY app and select your PS5. (You can now move to your TV).
  7. Open ASTRO's PLAYROOM and select CONTROLLER DEMO. This will test every aspect of the controller including Vibration, Adaptive Triggers, Touchpad, Motion Sensor (Gyroscope), Adaptive Triggers, and Mic (headset mic from PC Sound Card).

  8. The DUALSENSE touchpad LED is WHITE when browsing the PS5 menu and changes to BLUE as soon as you open ASTRO's PLAYROOM or any other PS5 game.

If successful, the DUALSENSE touchpad will change to solid BLUE as soon as you open ASTRO'S PLAYROOM๏ปฟ, and if the ADAPTIVE TRIGGERS test works, that indicates Zen, controller, PC and console (using PS REMOTE PLAY) are now correctly paired and you can play your favorite PS5 games. If Adaptive triggers don't work, make sure the controller is powered on by pressing the PS button, then press Zen's reset button a couple of times. If the test still fails, unplug the PROG mini-USB cable and again press Zen's reset button a couple of times; that should re-sync everything and Adaptive Triggers should now work. Note: The Zen RGB LEDs don't currently light up when gaming on a PC w/ PS REMOTE PLAY and a DUALSENSE controller.

๏ปฟAUDIO: The DUALSENSE does not support audio over Bluetooth. If you wish to use a headset, connect it directly to the PC's sound card, and the controller mic also gets re-routed directly to the headset mic (you can test this in ASTRO's PLAYROOM - click on the mic icon in PS REMOTE PLAY to unmute, as pressing the mute button on the controller sometimes causes an E3002 error). If you don't have a headset and wish to use voice chat, you can also use a laptop's built-in microphone.

๏ปฟSTEAM USERS: If you have Steam installed and running on your PC, the Zen RGBs, the DUALSENSE touchpad will change color to CYAN. We recommend that you close Steam while using PS REMOTE PLAY. Once you've done that, press Zen's reset button and the Touchpad and Zen RGBs will change to BLUE once you're in a game.

๐ŸŽฎ CROSSOVER CONTROLLERS

If you wish to use any other controller with PS REMOTE PLAY, simply follow the instructions above, the only difference being a DUALSENSE controller connects to A1 as a license donor, and your preferred PLAYSTATION, XBOX, or NINTENDO controller connects to A3, or pairs to the Zen using a Wireless adapter or Bluetooth (if supported). It will emulate as an original DUALSHOCK 4 controller๐Ÿ‘

TIPS & TRICKS

๐Ÿ’กPRO TIP

Connect a wired Keypad or Keyboard to A2 or A3 and use it alongside your controller for powerful GamePack MODs, Scripts, and Build/Edit Macros. This is REALLY popular with Fortnite, CoD & Apex Legends players who are slaying with the new 32bit Community Supported GamePacks ๐Ÿ˜‰

๐ŸšฆLIVE MONITORING

If you wish to monitor controller outputs in real-time with Zen Studio, connect the PROG (mini-USB) cable from Zen to PC, and keep the Zen connected to your PC with the CONSOLE/PC (micro-USB) cable. Open Zen Studio and make sure the Zen is detected, then go to the Device panel and select Tools > Device Monitor (Shortcut: F3).

โ˜ข๏ธ OFFICIAL TROUBLESHOOTING

Here are the official PS REMOTE PLAY troubleshooting guides:

๏ปฟ

โ˜ข๏ธ PS REMOTE PLAY LAG

If you experience lag with the official PS REMOTE PLAY app, try Chiaki PS Remote Play, a very popular open-source alternative that is fast and easy to setup.

๏ปฟ

Many community members have also offered the following tips for lag free PS5 gaming:

  1. Your console and PS REMOTE PLAY Windows device should both be on the same wired network.
  2. If vibration ever lags, simply reset the PS REMOTE PLAY app.
  3. If you are using a modern USB-C mobile device, try a USB-C GIGABIT ethernet adapter.
  4. Upload speed should be at least 5Mbps - but the higher the better.
  5. Ping/Latency is super important. Anything below 20ms is good. Bad ping = ๐Ÿ’€
  6. Try another device - PS REMOTE PLAY may not work well for you on a Mac, but Android Chiaki may be for the win.

Also, the Bluetooth pairing between Zen and your controller will be lost if....

  1. You connect the controller to a console directly by USB
  2. You connect the controller to a Windows PC directly by USB
  3. You pair the controller via Wireless adapter to any other device
  4. You connect the controller to A1 then connect Zen to a console
  5. You perform a factory reset in Zen Studio

For more detailed help, check out the extensive TROUBLESHOOTING ๐Ÿ‘ˆ guide.

๏ปฟ

Updated 09 Jun 2022
